Description

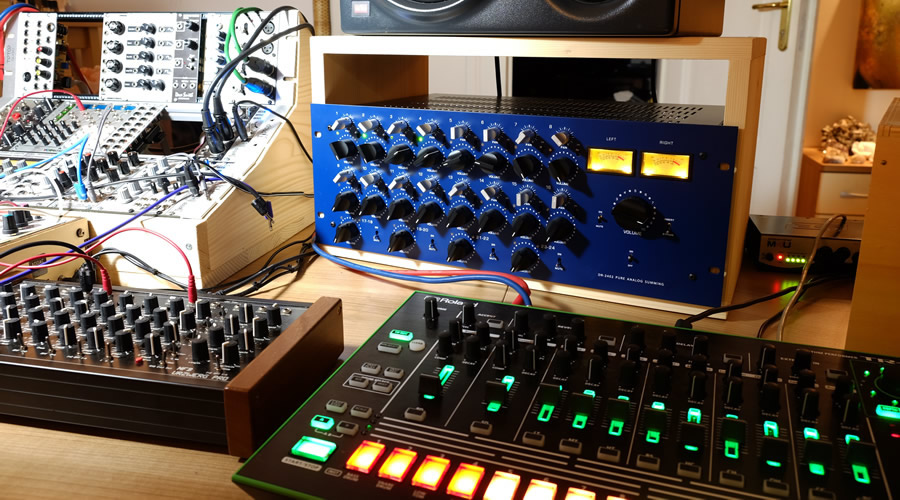

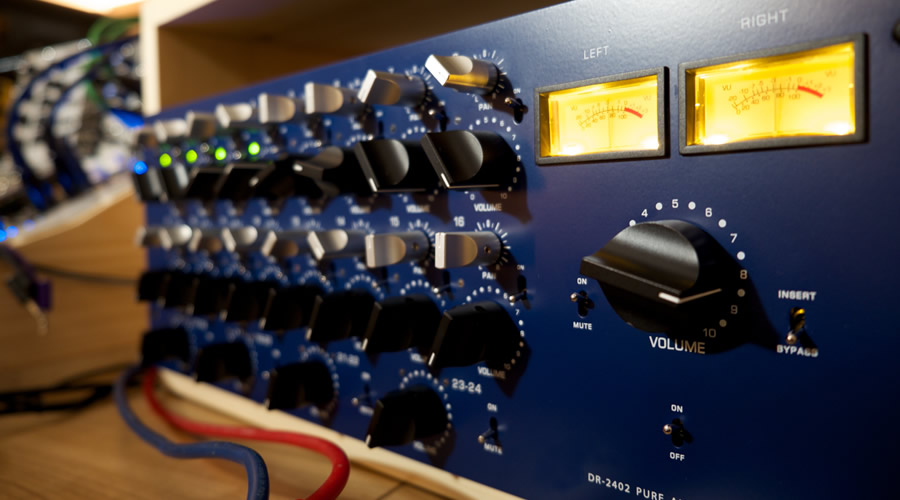

DR-2402 – 24ch. Summing Mixer
The DR-2402 provides API* Summing style of 24 inputs in 4U rack space and features a Level control, Panning + Master control Knob. Each channel has a balanced input which is enhanced with discrete amplifier and direct output, Level Control / Pan / Mute – on first16ch. & Level Control / Mute – on the last 8ch which are in 4 stereo pairs – making this the perfect mixer for any line level application. Mixer has also 24ch. of direct outputs. Master section has double VU metering plus the stereo insert and 2 pairs of stereo outputs. Each output channel goes through 2 different transformers and through discrete amplifiers (DOA). This is how the DR-2402 gets the powerful and punchy sound.
DIY Experience level: LOW MID PRO
Features
- 24 Balanced Inputs & Direct Outs
- Level Control / Pan / Mute 1-16 ch.
- Level Control / Mute on last 8 ch.
- Peak/Signal led indicators on all ch.
- Master VU Meter option

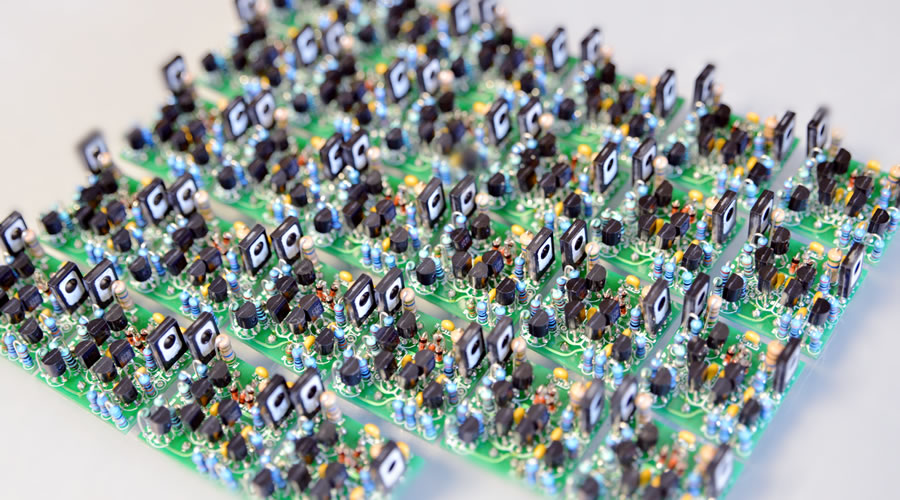

- 2520 DOA on all 24 channels
- INSERT in master section
- 4 output transformers
- 4 DOA on outputs

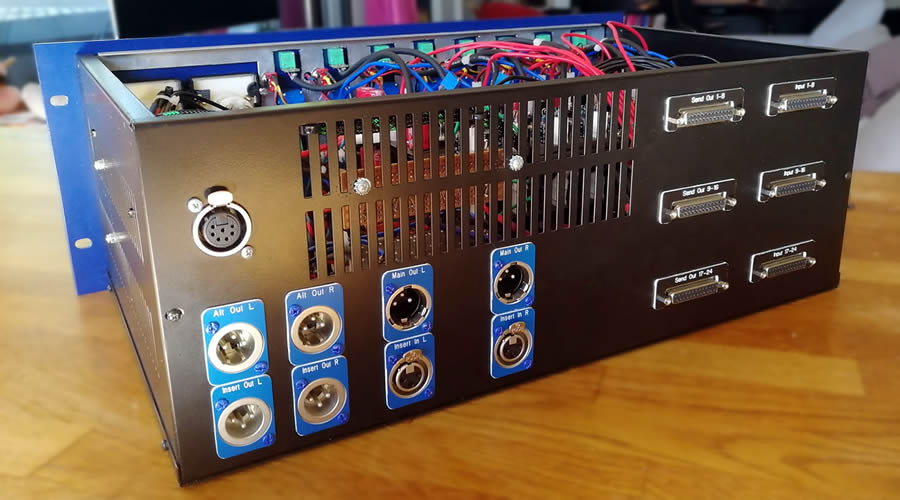

- D-sub Interface connections
- ACA API* Summing AMP (Capi)
- Master Fader
What we offer:

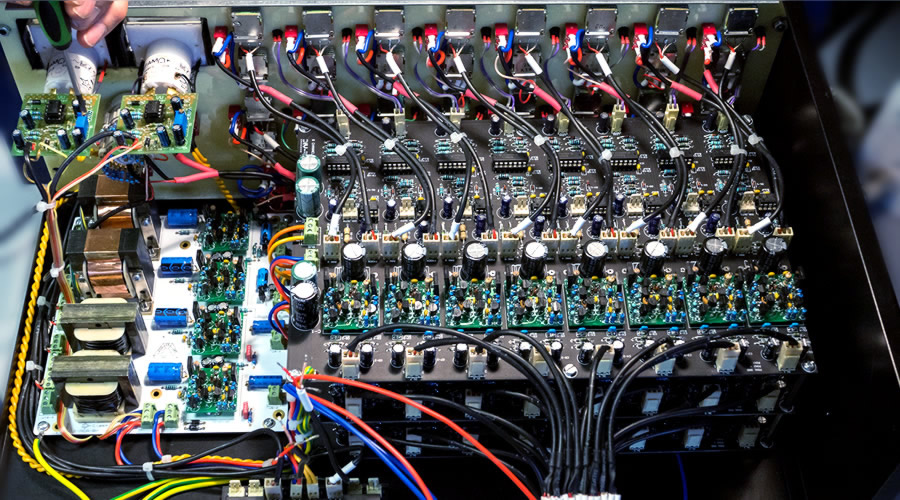

• 4U DR-2402 fully ready case

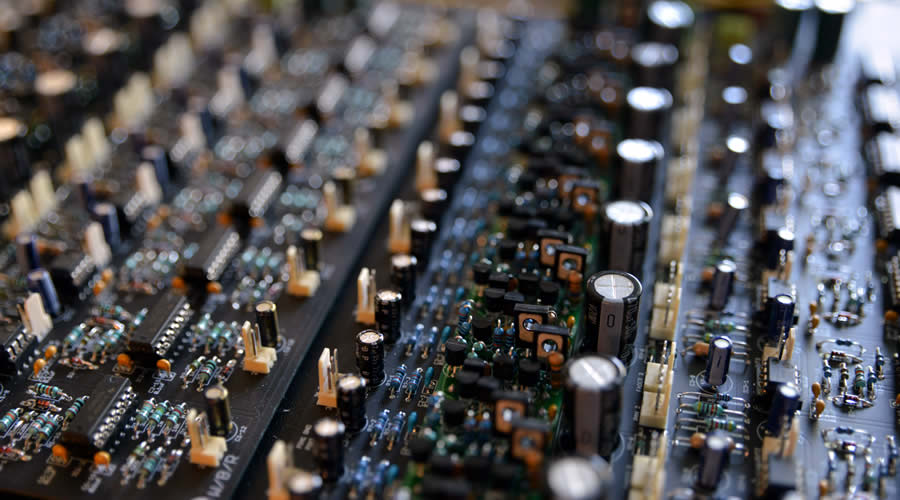

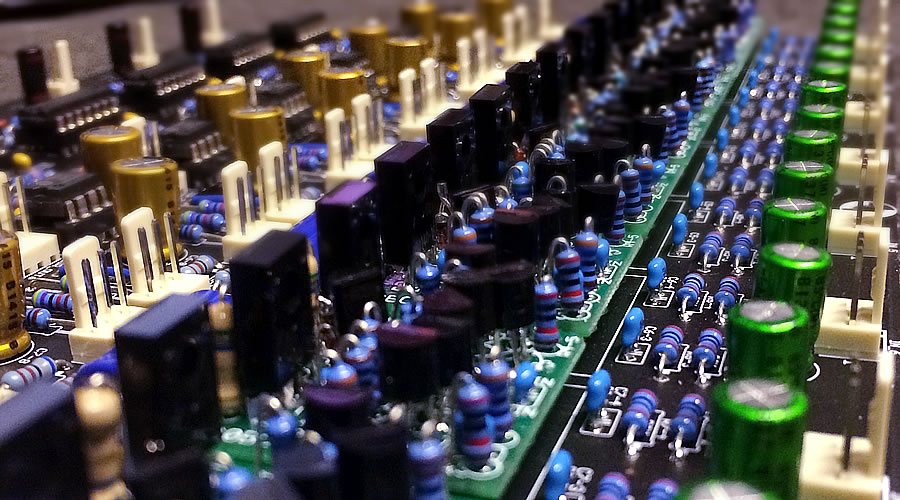

• 3 x 8ch MIXER PCB (all 24ch)
• INSERT PCB (for master section)
EXTERNAL PSU KIT – (85€)
• PSU CASE / PCB / PSU toroid
TOTAL PROJECT (KIT + BOM)
DR-2402 PERSONAL SHOPPER
You can hire us to source all the needed BOM parts for DR-2402 project for you.
To save your time you can use our Personal Shopper option instead.
Unique Highlights
API* Style Summing
We all know that special things can happen when using these summing mixers in their non-traditional roles. To that end, DIY-Racked ensured that you get an immaculate API* inspired end to end replica which became legendary tool in studios all over the world.
Get Professional!
The DR-2402 is not only a part of the best selling DIY-Racked product line, but a key unit in making your tracking and mixing sessions as professional as they can be.
DR-2402 - Specifications
- 24 Balanced Inputs & Direct Outs
- Level Control / Pan / Mute – on first 16 ch.
- Level Control / Mute – on last 8 ch.
- Peak/Signal led indicators – on all 24 ch.
- Master VU Meter option
- 2520 DOA on all 24 channels
- INSERT in master section
- 4 output transformers
- 4 DOA on outputs
- D-sub Interface connections
- ACA API* Summing AMP (order from capi)
- Master Fader
