Description

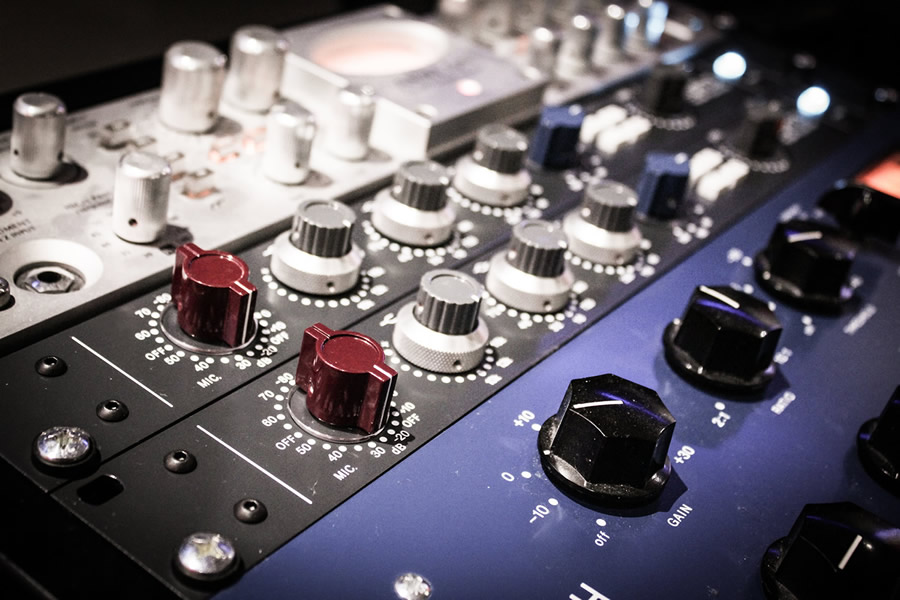

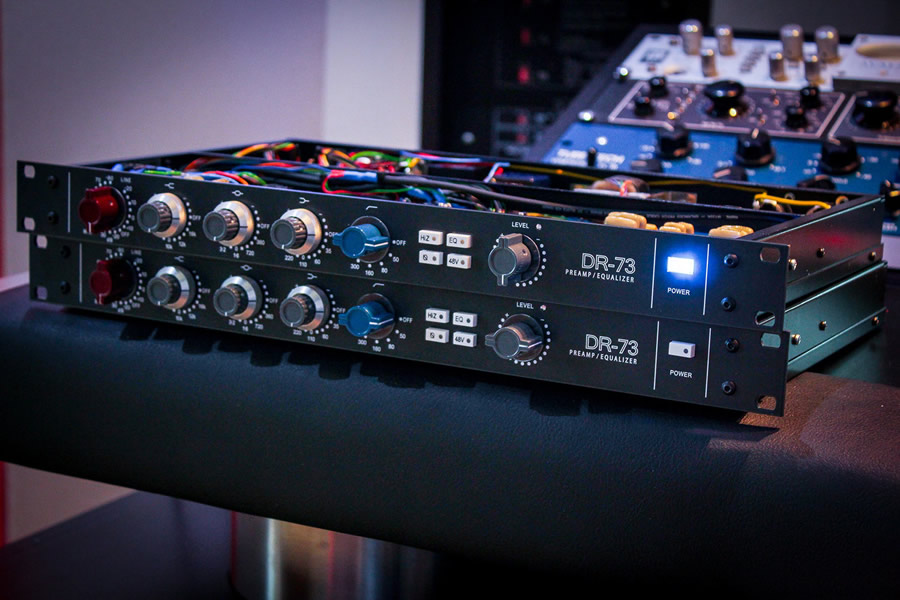

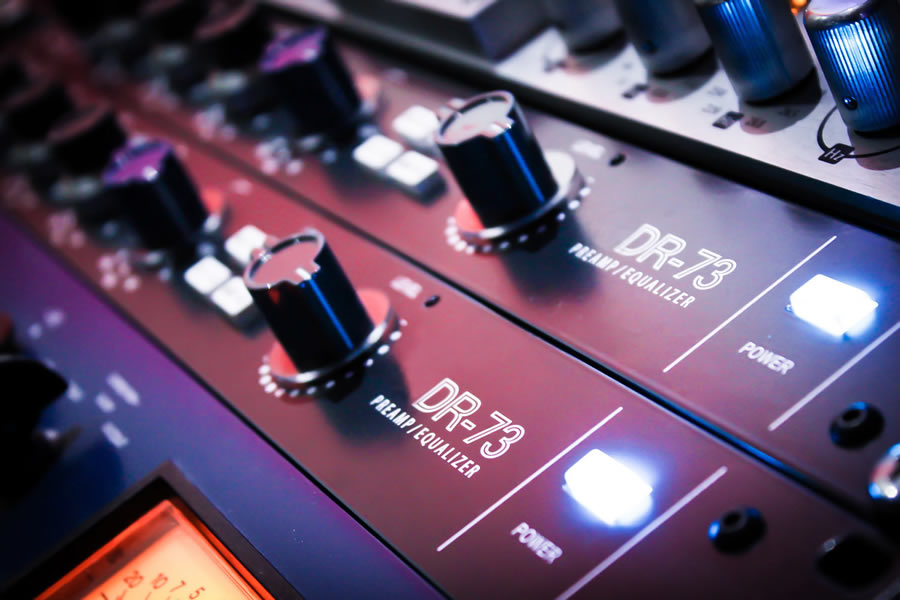

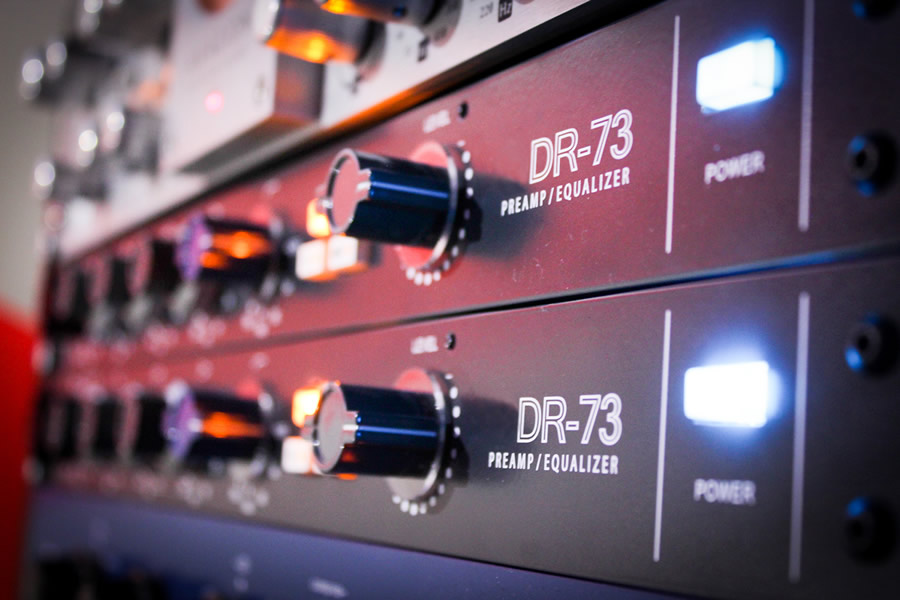

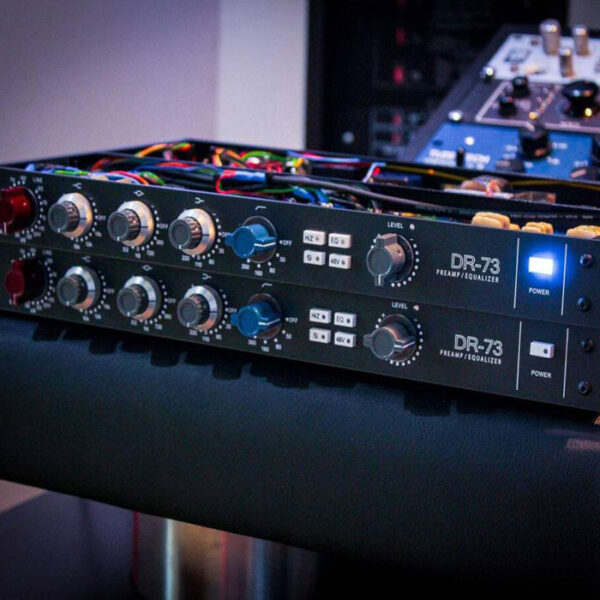

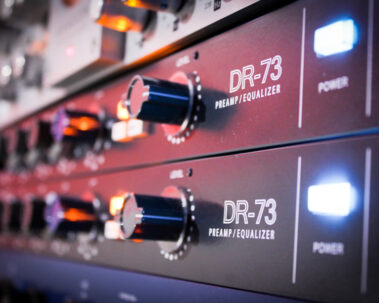

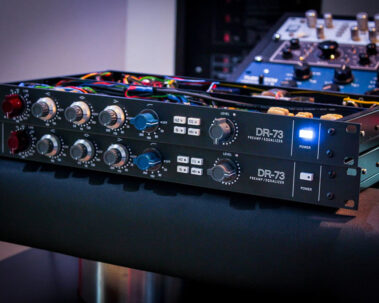

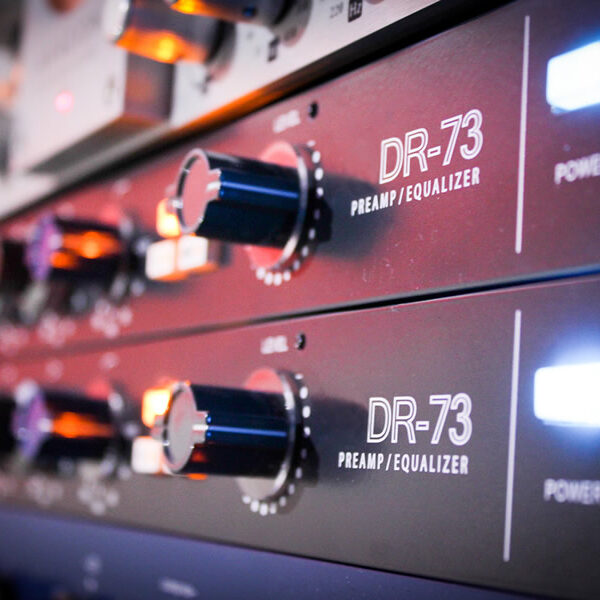

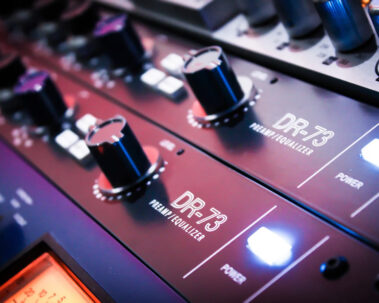

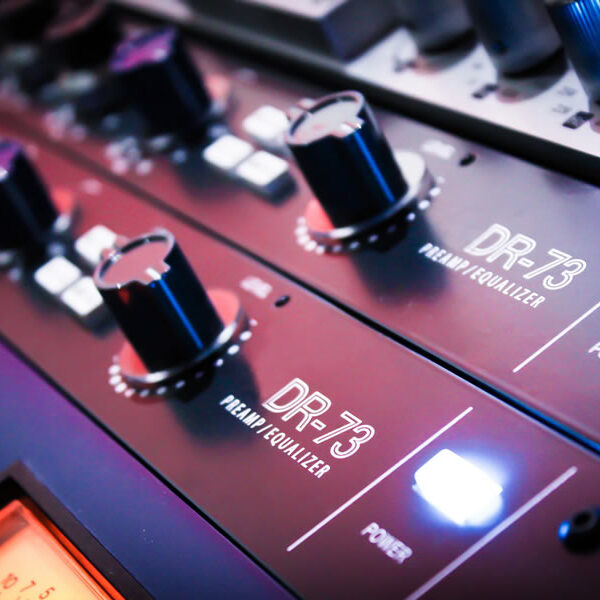

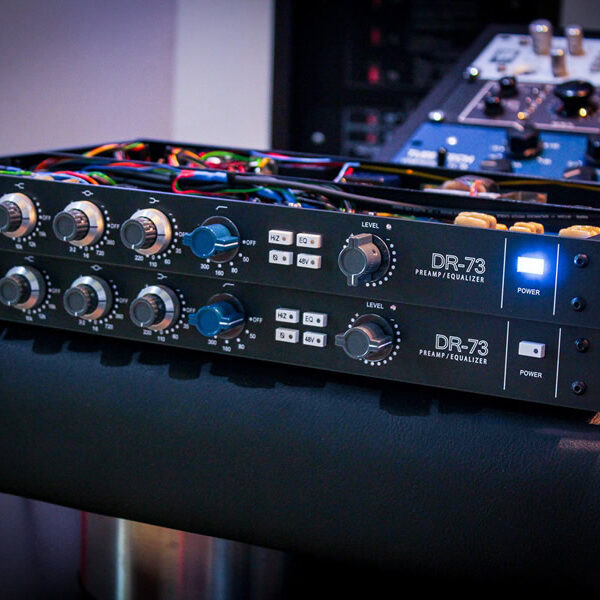

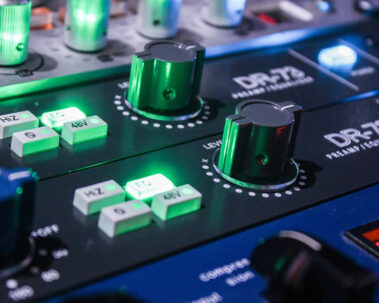

DR 73 - Preamp / Equalizer
One of the most recognizable vintage preamps on the market today. The Neve* 1073* has been a staple in recording studios for decades. 1073* will provide you with “weight” and “depth,” but it also means having clarity and the ability to stack a lot of tracks together in the mix.
DIY Experience level: LOW MID PRO
Features
- Recreation of the vintage N73
- using original N73 PCB layouts
- hand wired as in vintage N73

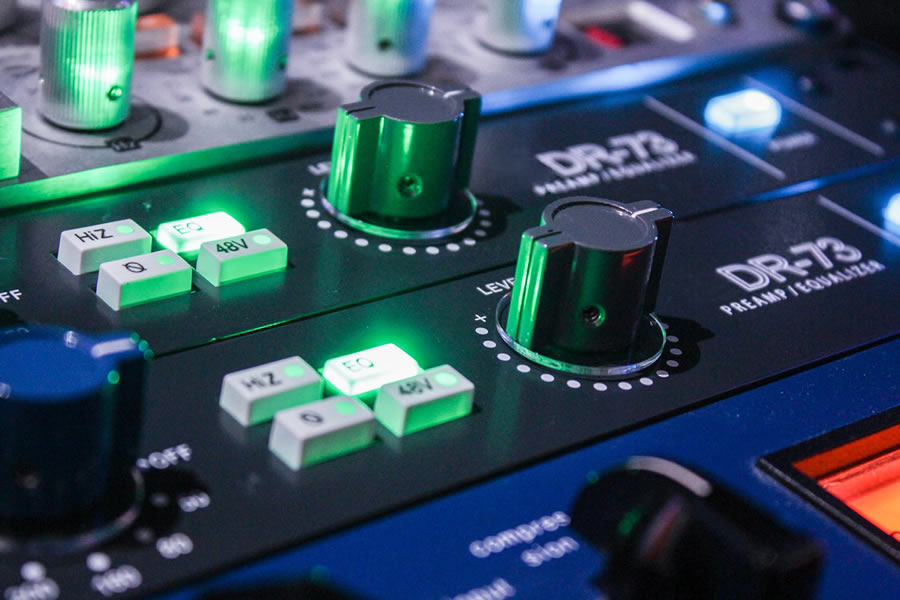

- Engraved printed pushbuttons
- Peak/Signal led indicator
- Relay controlled
- External PSU
What we offer:
• 1U DR-73 CASE
• DR-73 PCBs
• ENGRAVED PUSH BUTTONS

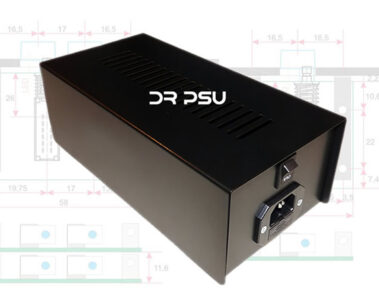

EXTERNAL PSU KIT – (75€)
• PSU CASE / PCB / PSU toroid
TOTAL PROJECT (KIT + BOM)
DR-73 PERSONAL SHOPPER
You can hire us to source all the needed BOM parts for DR-73 project for you.
To save your time you can use our Personal Shopper option instead.
Unique Highlights
Weight and Warmth
Impart that classic tone and warmth, rich in harmonics and fullness with probably best 1073* replica out there!
Shape It!
On top of its preamp section, You have a 3-band EQ that was also a key factor in shaping the richness and sound of countless recordings.
DR 73 - Specifications
- Probably best replica of the classic Neve* 1073* console module
- Class A amp topology
- High Frequency: +/-16dB shelving at 10, 12, 16 kHz
- Low Frequency: +/-16dB with selectable frequency shelving of 35Hz, 60Hz, 110Hz & 220Hz
- Mid Frequency: +/-18dB peaking, fixed ‘Q’ , selectable center frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz , and 7.2kHz , dual inductor based
- High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz , 160 Hz & 300Hz, inductor based
- EQ Switch Switches the equalizer on or off
